Wiring kit

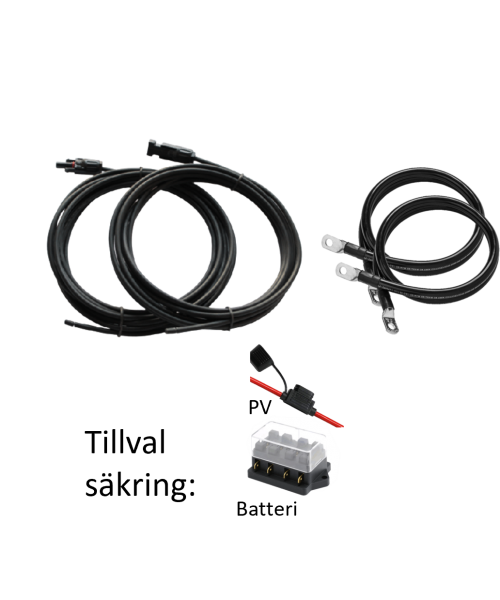

All you need to connect your solar panel! We have prepared the terminals and contacts so that it is only for you to screw the fuse holders and ansulta wiring harness - solar panel, battery, fuse holders and the regulator. Thanks to the wide area of ??the cable 6mm ^ 2 so stick cable losses below 3% at P max for all of our solar panels. This produces the following is included in the wiring kit:

• 2x 10 meters 1x6mm2 UV resistant   photovoltaic cable to connect the solar panel to solcellsregulatorn (part no   1023553-10m )
• 2x 3 meters 1x6mm2 battery cable to connect to the battery solcellsregulatorn (part no 1023553-3m )
• A pair of MC4 connectors to connect the solar panel wiring   with wiring from solcellsregulatorn (part no   2014-000740001 )
• Three fuse holder, to the solar panel,   a to the battery and to the load (part no   2014-21 )
• Two fuses that fit your regulator, a   and a battery to the load (part no   < a href = "https://www.solorder.se/tillbeh%C3%B6r/Elartiklar/Flatsakring"> 2014-211 )

  To fuse, please check the respective solar cell controller side product
